Product positioning |
Mini GPS tracker |
| Main features |
Bitmap Bitmap Bitmap Bitmap
| Delicate appearance pendant, GPS + WIFI + LBS multimode precise positioning, static dormancy save electricity design, real-time positioning, intelligent monitoring | |
| 1. structure division |
| structure parts |
category |
specification |
remarks |
| ID design |
delicacy and smart |
|

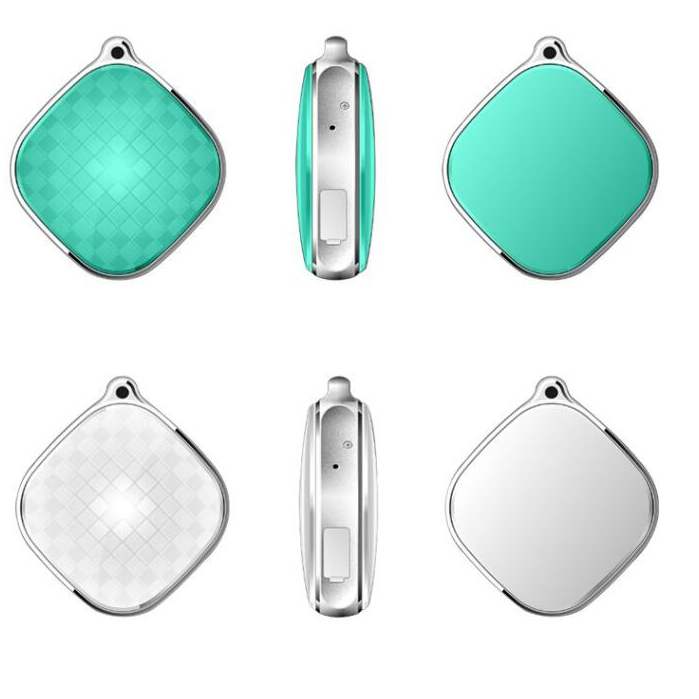

| Whole machine size |
38.5X38.5X17mm |
|
| Weight |
22g without package, 130g with package box |
|
| colour |

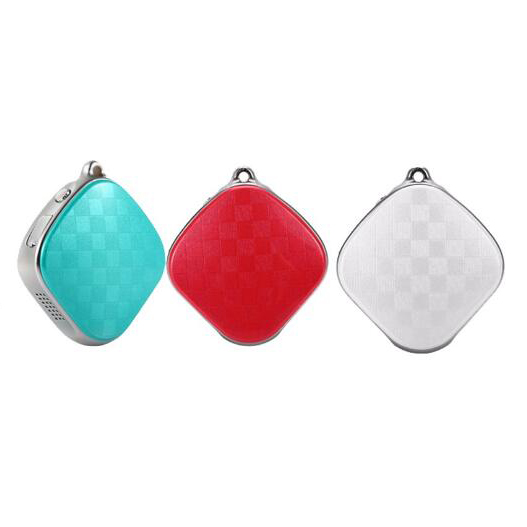

Color Optional |
|

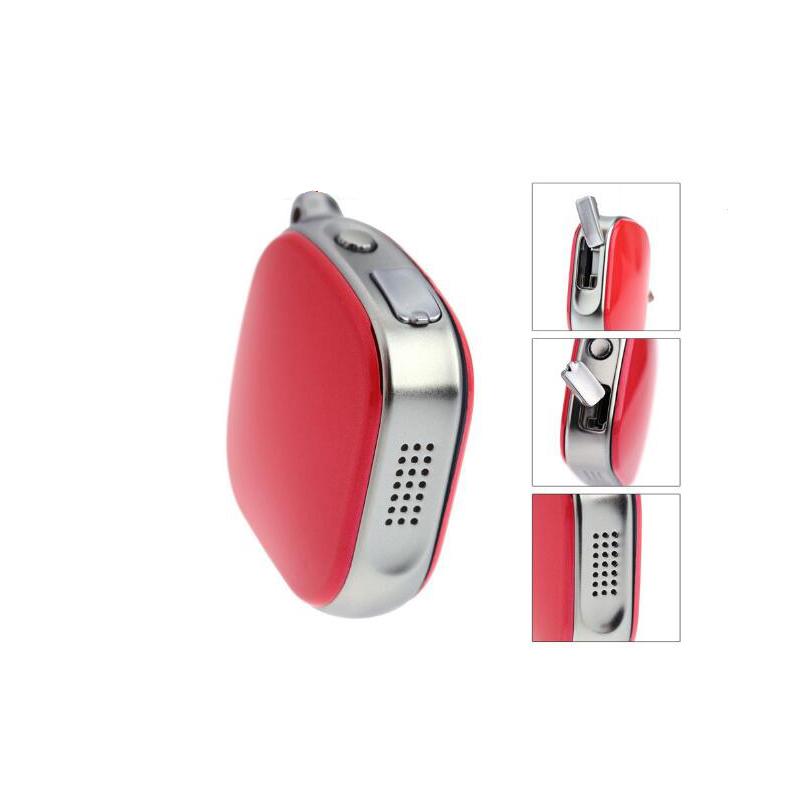

| button |
one button（power/SOS button) |
|
| screen |
no |
|
| gps antenna |
High sensitive ceramics active antenna |
|
| GSM antenna |
FPC antenna |
|
| battery |
500mAh |
|
| SIM card slot |
1 pc |
|
| G-sensor |
support |
|
| I/O port |
USB charge |
|
| 2. Hardware parts |
| Hardware parts |
CPU |
MTK MT6261 |
|
| GPS chip |
MTK3337 |
|
| GPRS |
Class12 |
|
| GPS signal |
L1,1575.42MHz C/A |
|
| GPS channel number |
22 channels |
|
| GPS chip receive sensitivity |
Tracking sensitivity:-165dBm，capture sensitivity：-148dBm |
|
| GPS location accuracy |
5～15M |
|
| LBS location accuracy |
100-1000M |
|
| Minimum standby current |
less than 0.5 mA |
|
| Average stndby current |
less than 2.5 mA |
|
| Average working current |
around 55mA |
|
| Working temperature |
-20～70℃ |
|
| Working humidity |
5% to 95% non-congealable |
|
| Test and certification |
can approval by 3C,CE&ROSH |
|
| GPS antenna |
Built-in high sensitivity FPC antenna |
|
| GSM antenna |
Built-in four frequency method of antenna |
|
| bluetooth |
bluetooth 3.0（Normal closed） |
|
| G-sensor |
Support |
|
| MIC |
Support |
|
| 3. software parts |
| software parts |
supported operating systems |
Support android 2.3 and above system, IOS5.0 and above. |
|
| call function |
double talk/The remote monitoring |
|
| Language support |
Simplified Chinese and English |
Compatible with support for multi-languages |
| GSM+GPRS+GPS |
GPS+LBS+WIFI Multi-modal positioning |
|
| support AGPS |
Cold start 26 seconds positioning |
|
| call function |
SOS call, voice monitor, whitelist for don't disturb |
|
| power management |
Ultra-low power consumption of power management,intelligent dormancy |
|
| One key emergency |
SOS one key emergency function ,autodialing |
|
| Smart Geo-fence |
Outside the range setting can be automatic alarm |
|
| historical route |
Can check history of three months |
|
| wireless upgrading |
Software upgrade, remote debugging maintenance, remote setting parameters |
|
