| JS-Y202 Mini Vehicle GPS Tracker |
Apllication
1. Vehicle GPS Tracker
2. Motorcycle GPS Tracker |
 |
|
|
|
 |

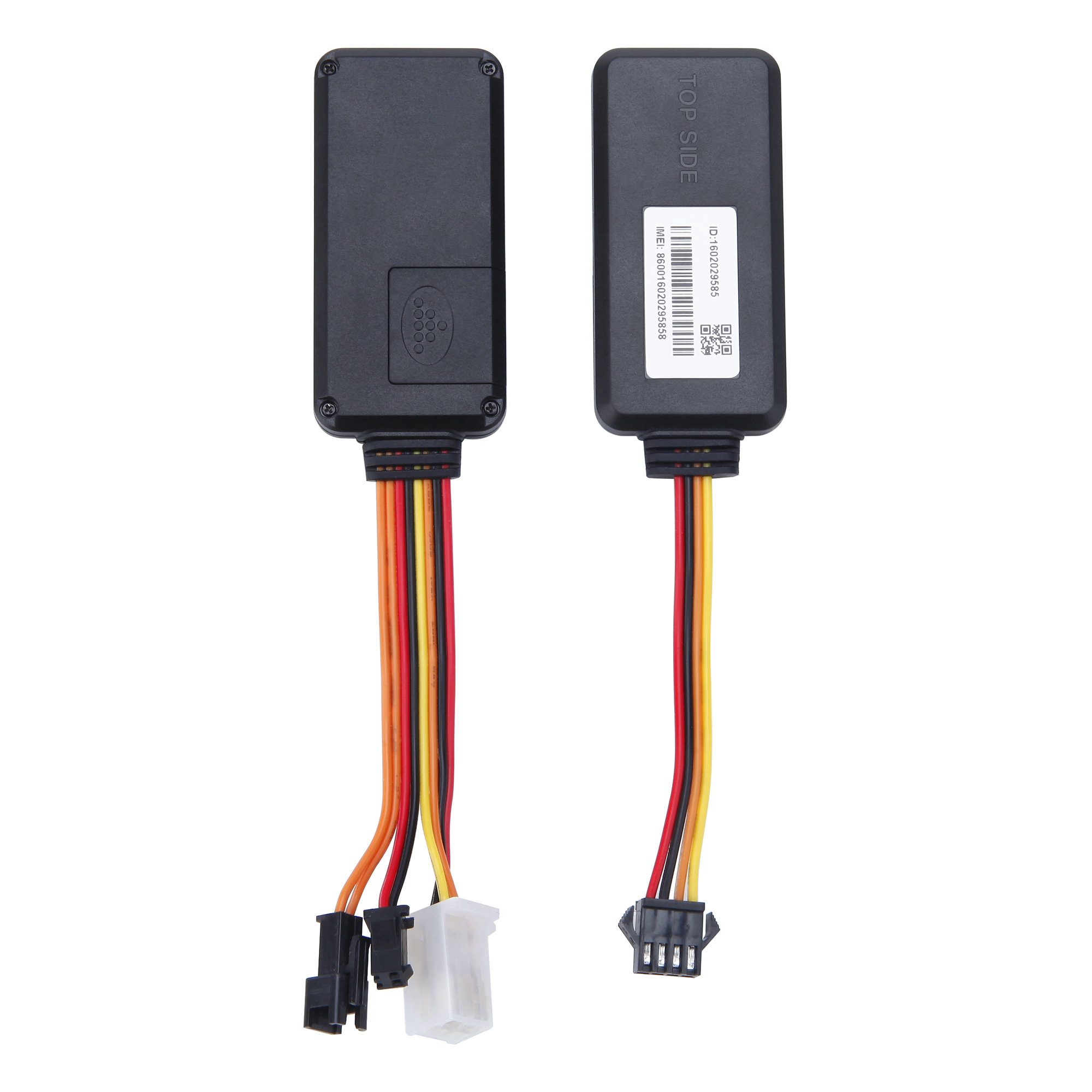

| Product Picture and Size |
| Size |
|
| Product Type |

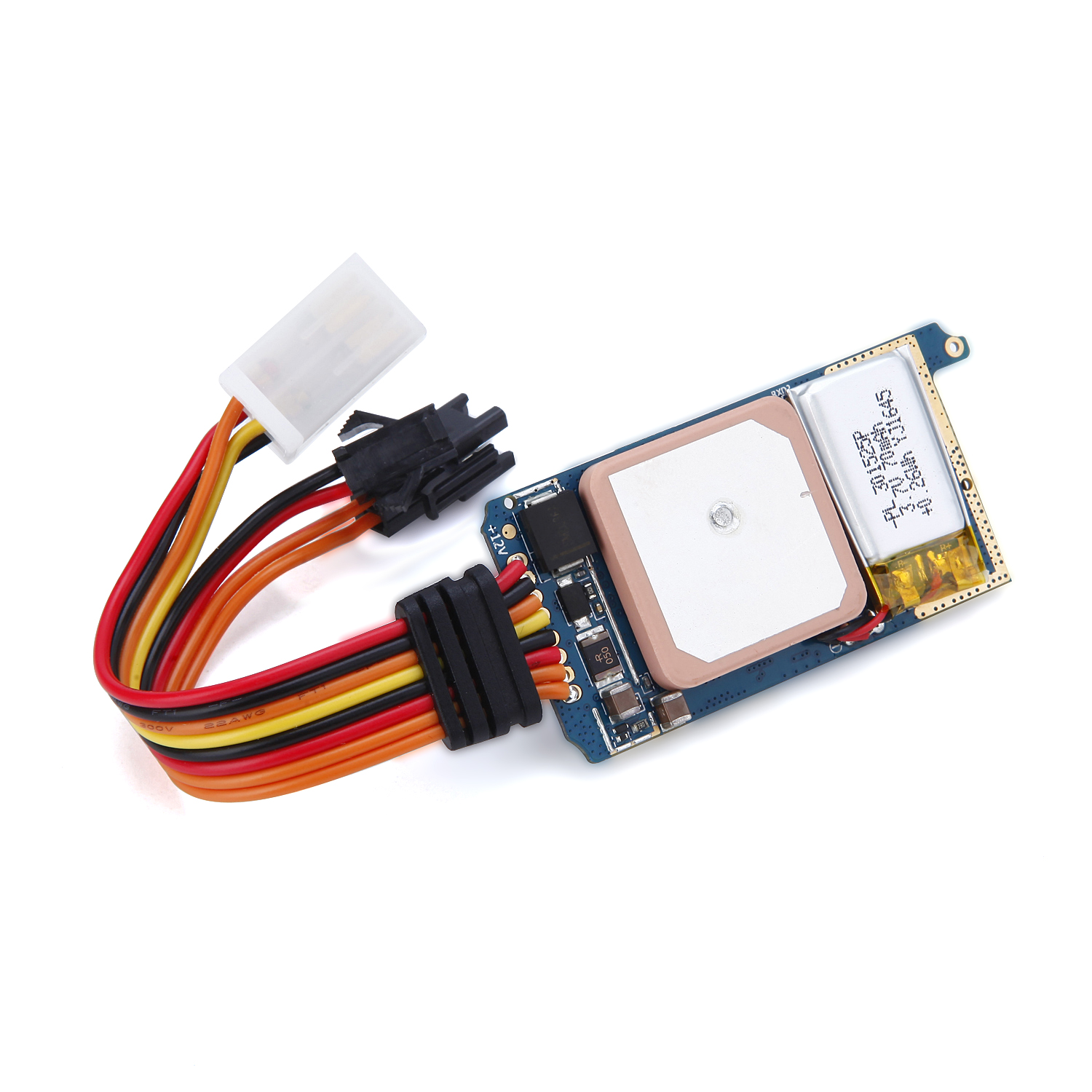

Vehicle GPS Tracking PCBA Board |
|
| Board Size |
29.0 X 60.5 X 3.8mm |
| Product Size |
33 X 68 X 10.5mm |
| |
|
| |
|
| Apllication |
Vehicle GPS Tracker |
| |
motorcycle GPS Tracker |
| |
|
| |
|
| |
|
| Product Functions |
|
Performance and Parameters |
| System Platform |
MTK |
GSM baseband IC |
MTK 6261D |
| GPS receiver |
YES |
GPS IC |
Ublox G7020 |
| AGPS |
YES |
GSM band |
850/900/1800/1900MHz |
| SMS Config Commands List |
YES |
GPRS |
Class12 |
| LBS |
YES(Need Server support) |
GPS signal |
L1,1575.42MHz C/A code |
| Historical Path Playback |
YES |
GPS channels |
56 channels |
| OEM GPRS Protocol |
YES |
GPS fixed Time with AGPS |
Cold start 15s |
| UART Interface |
YES(Used for OBD/MCU) |
GPS receiving sensitivity |
Tracking：-159dBm,
Capturing：-143dBm |
| Check by SMS |
YES |
GPS positioning accuracy |
10-15m |
| Remote sound monitoring |
YES |
Average standby current |
<2.5mA |
| Build-in Battery |
YES(200mAh Optional) |
Average working current |
<55mA |
| SIM Card |
Micro SIM |
Working tempreture |
-20～+70 centigrade |
| Support Key Num |
No |
Working humidity |
5% to 95% |
| LED indicate |
YES |
GPS ANT |
highly sensitive ANT |
| OLED screen |
No |
GSM ANT |
dual band monopole antenna |
| Micphone |
YES |
|
Bitmap
|
| Speaker |
NO |
ACC Detect Support |
Yes |
| SOS |
YES |
Oil/Power Control Support |
Yes |
| USB |
NO |
Working Voltage |
9V~ 36V |
| Bluetooth 3.0 |
NO |
|
|
| G-sensor/BMA230 |
YES |
|
|
| |
|
|
| |
|
 |
|
|
|
|
 |
