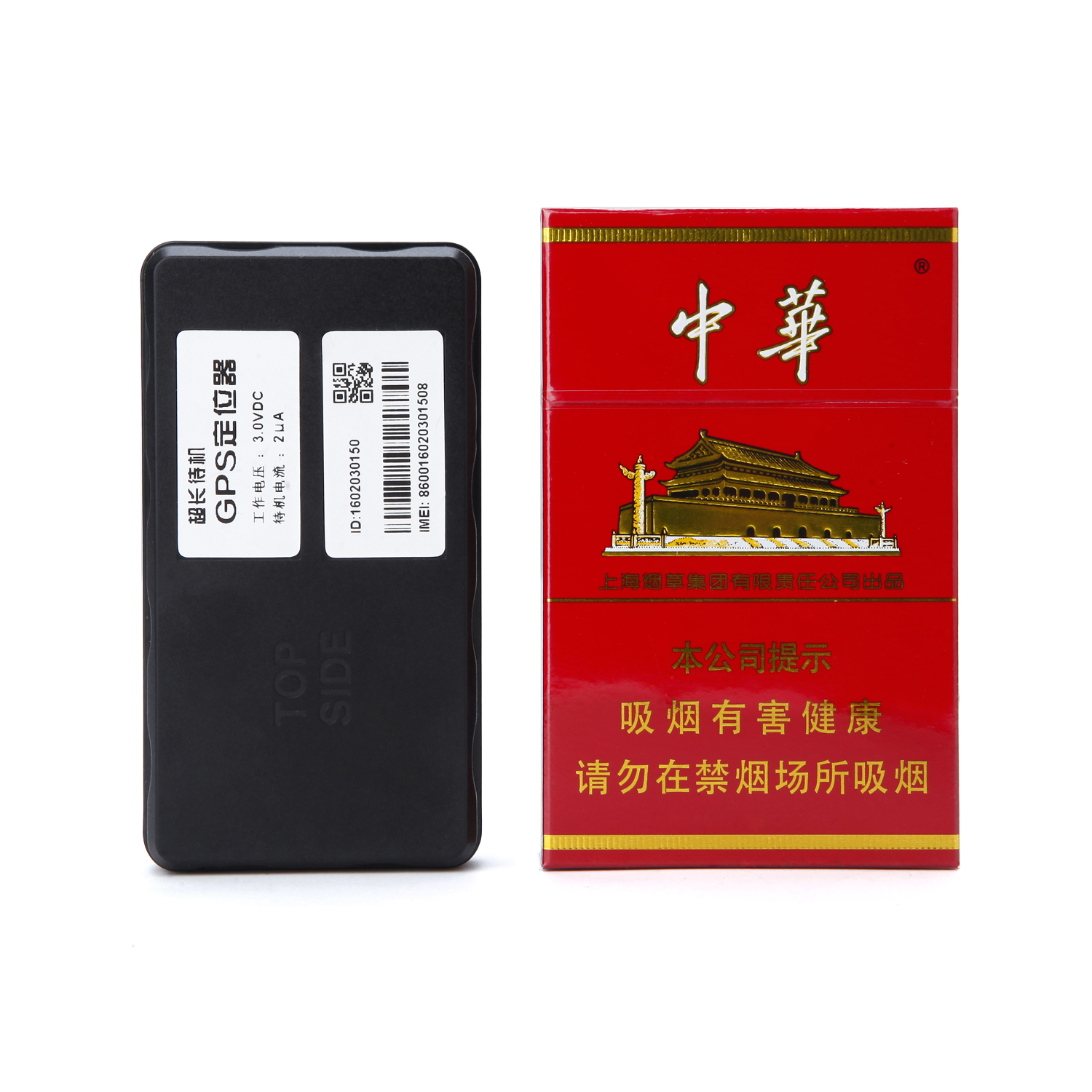

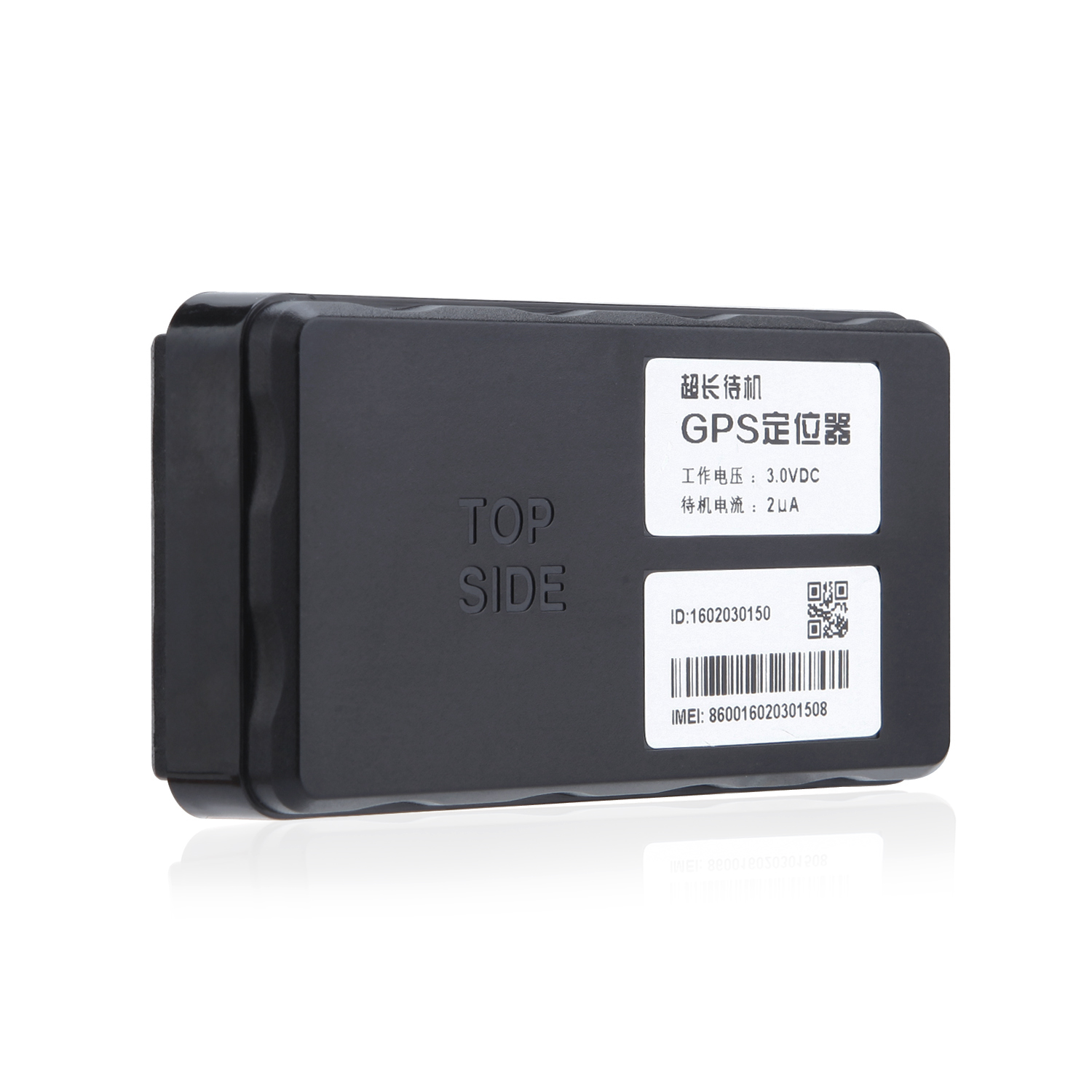

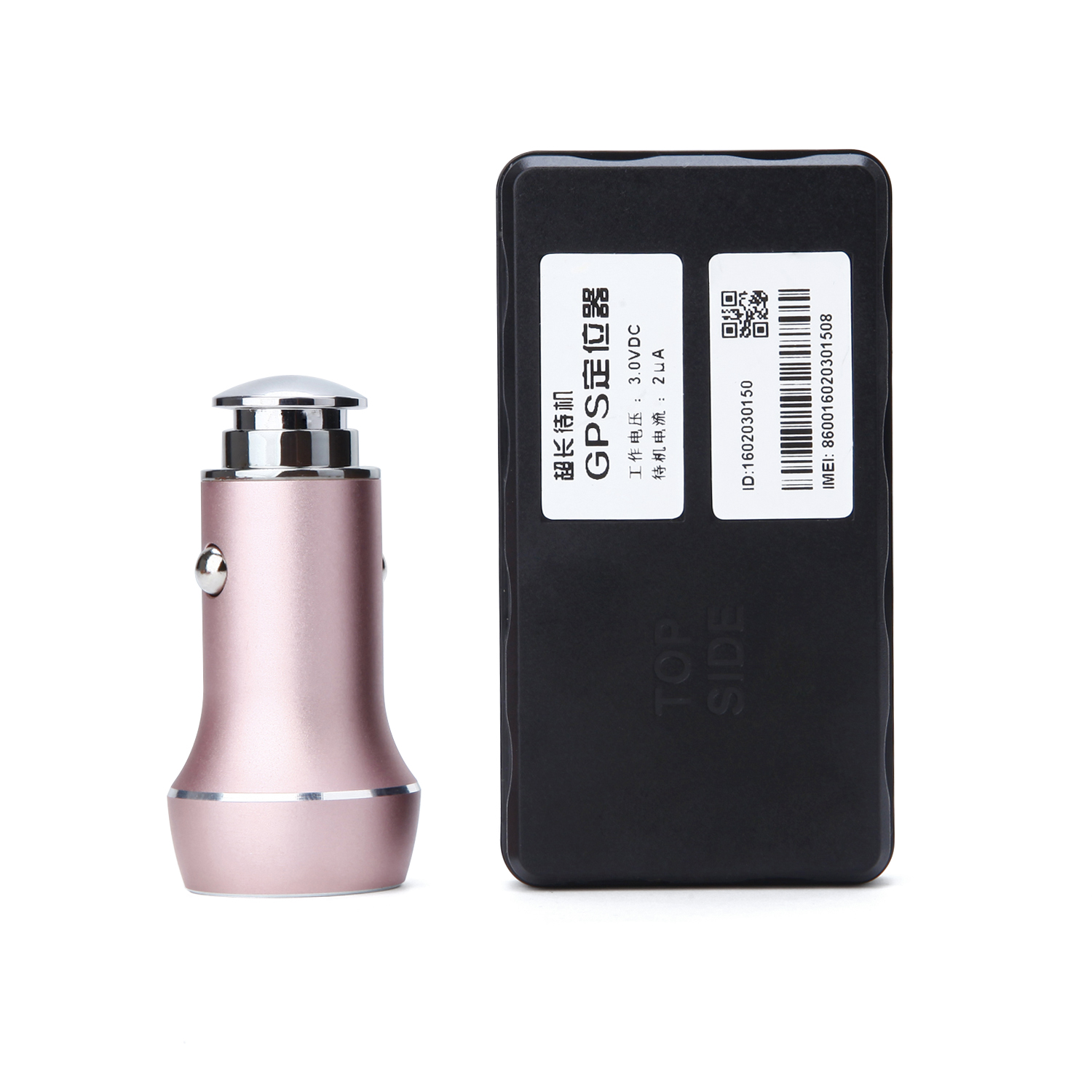

| Product Picture and Size |
| Size |
|
| Product Type |
Portable GPS Tracker |
|
| Board Size |
26.0 X 43.5 X 3.8mm |
| Product Size |
46 X 85 X 21mm |
| |
|
| |
|
| Apllication |
1. Hide Long Standby Tracking |
| 2.PET Tracking |
| 3.Wireless Car Tracking |
| |
| |
| Product Functions |
|
Performance and Parameters |
| System Platform |
MTK |
GSM baseband IC/MCU IC |
MTK 6261D/Ti MSP430 Low Power MCU |
| GPS receiver |
YES |
GPS IC |
Ublox G7020 |
| AGPS |
YES |
GSM band |
850/900/1800/1900MHz |
| SMS Config Commands List |
YES |
GPRS |
Class12 |
| LBS |
YES(Need Server support) |
GPS signal |
L1,1575.42MHz C/A code |
| Historical Path Playback |
YES |
GPS channels |
56 channels |
| OEM GPRS Protocol |
YES |
GPS fixed Time with AGPS |
Cold start 35s |
| UART Interface |
YES(Used for MCU) |
GPS receiving sensitivity |
Tracking：-159dBm,
Capturing：-143dBm |
| Check by SMS |
YES |
GPS positioning accuracy |
10-15m |
| Remote sound monitoring |
YES(Optional) |
Average standby current |
<1.5uA |
| Build-in Battery |
YES(4500mAh Optional) |
Average working current |
<10mA |
| SIM Card |
Micro SIM |
Working tempreture |
-20～+70 centigrade |
| Suppot Keys |
No |
Working humidity |
5% to 95% |
| LED indicate |
YES |
GPS ANT |
25x25x4mm highly sensitive ceramics ANT |
| OLED screen |
No |
GSM ANT |
4 band Polar ANT |
| Micphone |
YES(Optional) |
Work Voltage |
3V~4.2V |
| USB |
YES（USB to Serial） |
|
|
| Bluetooth 3.0 |
YES(Optional) |
Work Mode |
1. Tracking mode (report data very 5 mintues) |
| G-sensor/BMA230 |
YES(Optional) |
2.Alarm Clock Mode(report data Max 4 times very day) |
| |
|
3.Week Days Mode(report data 1 time any week days) |
| |
|
Battery Type |
1. 4200mAh Li-Mn(no re-chargerable) |
| |
|
2. 4500mAh Li(re-chargerable) |
