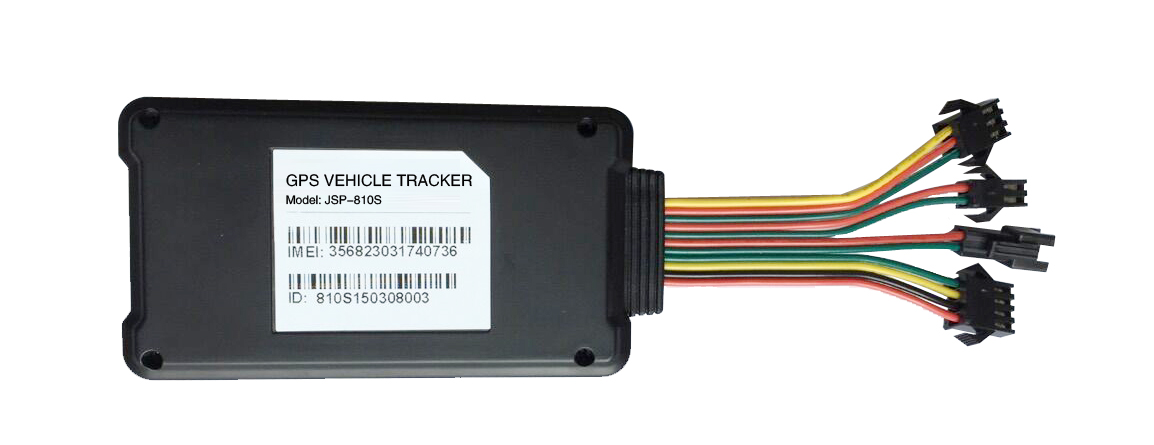

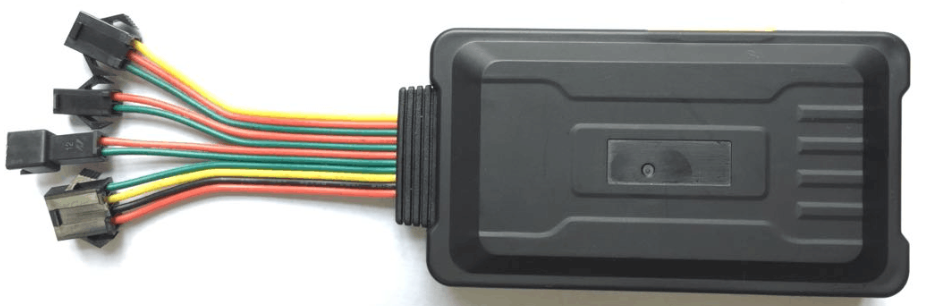

model number : JSP810S
Main Features
¡ñ Tracking via SMS or GPRS(TCP)
¡ñ Current location report
¡ñ Tracking by time interval
¡ñ Voice monitoring
¡ñ Geo-fence control
¡ñ Low battery alert
¡ñ Speeding alert
¡ñ Immbolizarion function supported
¡ñ SOS alarm supported
¡ñ Mileage report, ACC status report supported
Specification
|
Item |
Specification |
|
Voltage |
9-40V |
|
Operating temperature |
-20¡ã to 65¡ã C |
|
Humidity |
5% to 95% |
|
GSM module |
MTK6223 |
|
GSM Frequency |
GSM 850/900/1800/1900Mhzmhz |
|
GPS Chipset |
G591N / G591NB |
|
GPS Sensitivity |
-159Db |
|
GPS Frequency |
L1, 1575.42 MHz |
|
GPS Channels |
20 channel all-in-view tracking |
|
Position Accuracy |
3.0 meters, 2D RMS |
|
Velocity Accuracy |
0.1 m/s |
|
Hot start |
<1.5 sec., average |
|
Warm start |
<34sec., average |
|
Cold start |
<35 sec., average |
|
Size |
90¡Á53¡Á16MM |
|
Average current in standby mode |
Less than 80MA |
