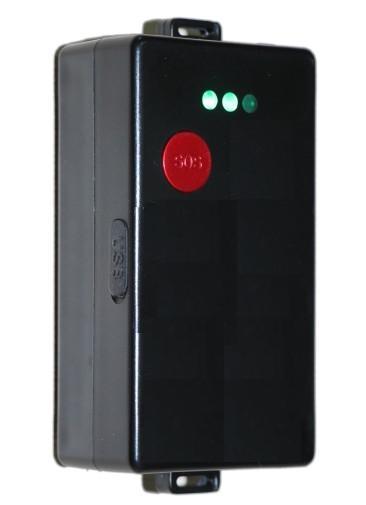

Magnet vehicle GPS tracker
Magnet vehicle GPS tracker

Applied range

ĘC Car rental industry and logistics business management

ĘC Outdoor mechanical equipment, and other anti-theft

ĘC tracking Private cars/enterprise vehicle burglar tracking

ĘC Container truck

model number : JSP009

Main Features

í˝Tracking via SMS or GPRS

í˝Built in 2600Mah battery which can work for more then 20days

í˝Waterproof IP56

í˝Magnet tracker . no need wire connection , easy to use

í˝Current location report

í˝Tracking by time interval

í˝Alert when Track enter/exits GPS blind area

í˝SOS alert

í˝Geo-fencing control

í˝Low battery alert

í˝Speeding alert

í˝Removable and rechargeable internal battery

í˝Built-in G-sensor

Specification

Item

Specification

Charging Voltage

DC 5V/500mA (Micro USB port)

Internal Battery

Rechargeable and removable 2600 mAh battery (3.7V)

Operating temperature

-20íŃ to 55íŃ C

Humidity

5% to 95% Non-condensing

Work Frequency

GSM 850/900/1800/1900Mhz

GPS Chipset

latest GPS (AGPS)

GPS Sensitivity

-158Db

GPS Frequency

L1, 1575.42 MHz

C/A Code

1.023 MHz chip rate

Channels

20 channel all-in-view tracking

Position Accuracy

10 meters, 2D RMS

Velocity Accuracy

0.1 m/s

Time Accuracy

1 us synchronized to GPS time

Default datum

WGS-84

Reacquisition

0.1 sec., average

Hot start

1 sec., average

Warm start

38 sec., average

Cold start

42 sec., average

Altitude Limit

18,000 meters (60,000 feet) max.

Velocity Limit

515 meters/second (1000 knots) max.

Acceleration Limit

Less than 4g

Jerk Limit

20 m/sec

Work time

60 hours in sleep mode and 10 hours in normal mode

Size

85*46*22mm
