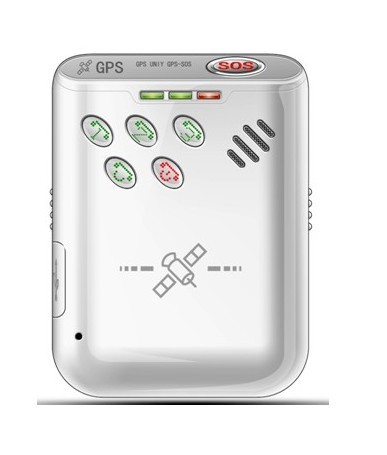

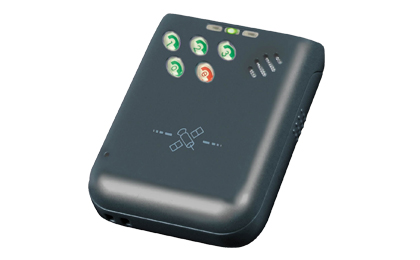

personal GPS tracker
personal GPS tracker

Applied range

– elderly,disabled monitoring

– Business people safe guard

– outworker management

– Outdoor sports

– other

model number : JSP008

Main Features

●Tracking via SMS or GPRS (TCP)

● Current location report

● Tracking by time interval

● Two-way conversation

● Voice monitoring

● Geo-fencing control

● Low battery alert

● Speeding alert

● Alert when tracker enters/exits GPS blind area

● Alert when tracker is turned on

● Motion sensor inbuilt for power saving

● Three buttons for making phone call and/or sending message

Built-in G-sensor


Specification

Item

Specification

Charging Voltage

DC 5V/500mA (Micro USB port)

Internal Battery

Rechargeable and removable 850 mAh battery (3.7V)

Operating temperature

-20° to 55° C

Humidity

5% to 95% Non-condensing

GSM module

GSM 900/1800/1900Mhz

GPS Chipset

latest GPS (AGPS)

GPS Sensitivity

-158Db

GPS Frequency

L1, 1575.42 MHz

C/A Code

1.023 MHz chip rate

Channels

20 channel all-in-view tracking

Position Accuracy

10 meters, 2D RMS

Velocity Accuracy

0.1 m/s

Time Accuracy

1 us synchronized to GPS time

Default datum

WGS-84

Reacquisition

0.1 sec., average

Hot start

1 sec., average

Warm start

38 sec., average

Cold start

42 sec., average

Altitude Limit

18,000 meters (60,000 feet) max.

Velocity Limit

515 meters/second (1000 knots) max.

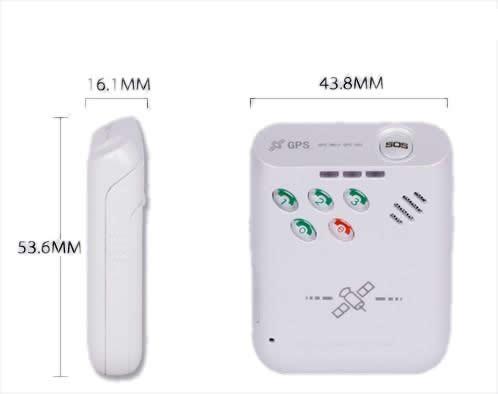

Size

43.8*16.1*53.6mm

Work Frequency

GSM 850/900 /1800/1900MHz
